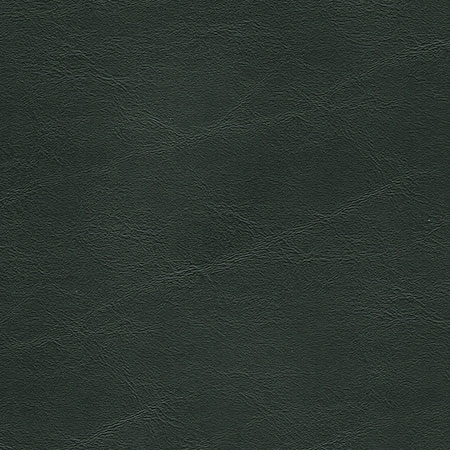

VINYL - ERIE
Erie
|
Finished Width |
60" |
| Roll Size |
50 yd. |
| Weight |
640/g/sq.m - 30 oz./lin. Yd. |
| Backing |
Knit |
|
Property
|
Method
|
Results
|
| Tensile Strength |
ASTM D5034 |
MD |
127.1 lbs. |
| |
CD |
60.1 lbs. |
| Tear Resistance |
ASTM D5587 |
MD |
10.5 lbs. |
| |
CD |
11 lbs. |
| Seam Strength |
ASTM D4034 |
MD |
> 55 lbs./ .25 inch |
| |
CD |
> 40 lbs./ .25 inch |
| Elongation |
ASTM D5034 |
MD |
40% +/- 5% |
| |
CD |
150% +/- 5% |
| Adhesion |
ASTM D751 |
MD |
15 N |
| |
CD |
15 N |
| Stretch |
SAE J855 |
MD |
3% +/- 5% |
| |
CD |
80% +/- 5% |
| Set |
SAE J855 |
MD |
1% +/- 5% |
| |
CD |
7% +/- 5 % |
| Abrasion |
ASTM D3884 Taber H-18/500gm |
500 cycles/no wear
|
| Color Fastness |
|
|
| Light |
SAEJ1885 |
|
225.6 Kj 5 rating |
| Crocking |
AATCC 8 |
Wet |
No Stain
|
| |
|
Dry |
No Stain
|
| Cold Crack |
GM9140 |
-30C
|
| Flammability |
FMVSS302 |
Pass
|
| CAL TB117 Section E |
Pass |
|
Polyurethane
